Measured building surveys and 3D laser scanning.

Accurate measured surveys using terrestrial laser scanning and drone capture, producing detailed, reliable outputs for design, planning and asset management.

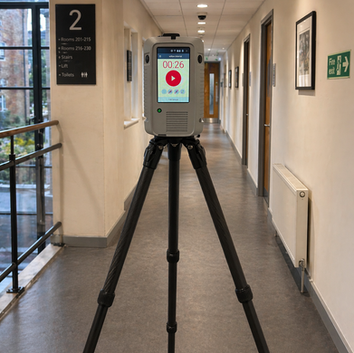

Leica RTC360 laser scanner on a tripod
Leica RTC360Terrestrial laser scanner

Full coverage, inside and out.

Each survey is tailored to the level of detail you need, from a high-level overview to a fully detailed dataset. Outputs include 3D point clouds, 2D floor plans, elevations and external models, all aligned and structured for professional use.

Combining ground-based scanning with aerial capture where it's needed gives full coverage of a building or site. That means fewer gaps in the data and a complete, dependable survey record.

We survey commercial, industrial and residential property using Leica laser scanners, RTK drone workflows and geospatial control.

What a survey can include.

  • Floor plans
  • Elevations
  • Sections
  • Roof plans
  • Reflected ceiling plans
  • Point cloud data
  • Revit and IFC models

Data is captured to give accurate, reliable outputs for planning, design, refurbishment and asset management.

Laser scanner set up in a restaurant
Restaurant fit-out, North London

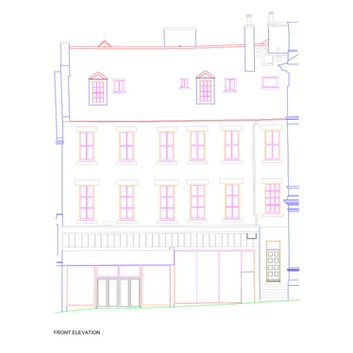

CAD front elevation drawing
Point cloud of a terrace
FormatsDWGPDFE57RCPLASRVTIFC

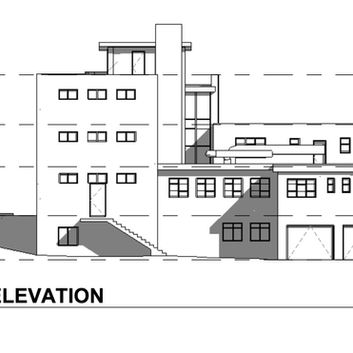

North and west elevations of a multi-storey building with level datums
Feasibility study

Multi-storey building, existing records

Laser scanned and modelled to give the project team accurate elevations, levels and floor plans for a feasibility study.

Elevations · floor plans · Revit model
Camera on a tripod inside a large empty industrial unit
New site fit-out

Empty unit ahead of fit-out

Captured before works began, so the fit-out design starts from the building as it really is.

Measured survey · site record

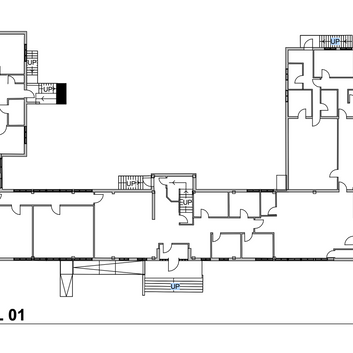

Level 01 floor plan of a multi-storey building at 1:200
Feasibility study

Floor plans at 1:200

Every level drawn from the scan, with stairs, doors and openings in place.

DWG · PDF
Ground floor plan of a large commercial building
Commercial

Large commercial ground floor

Curved frontage, columns and level changes captured in one plan.

Floor plan · DWG + PDF
Elevation and annotated ground floor plan of a single-storey school building
Education

Single-storey school building

Elevation and floor plans, with each room annotated with its area and ceiling height.

Elevations · annotated plans

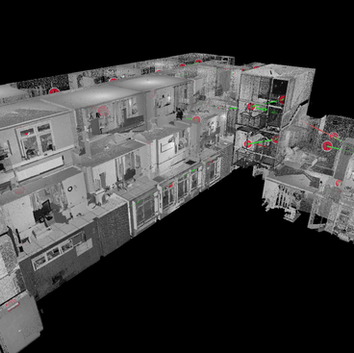

Registered point cloud of a terrace of buildings
Point cloud

Registered scan data

Every scan setup registered into one point cloud, ready for your CAD or BIM software.

E57 · RCP · LAS
Revit model cutaway showing internal walls and stairs
3D model

Building model from scan

Walls, floors and stairs modelled from the point cloud where the project needs BIM.

Revit · IFC

Common questions

Anything else, call 07974 308 637 or email alex@samarasurveys.co.uk.

What equipment do you use for measured surveys?

A Leica RTC360 terrestrial laser scanner, with RTK drone capture and geospatial control where a building or site needs aerial coverage.

What can a measured survey include?

Floor plans, elevations, sections, roof plans, reflected ceiling plans, point cloud data and Revit or IFC models, matched to the level of detail the project needs.

Which file formats do you supply?

Drawings as DWG and PDF; point clouds as E57, RCP or LAS; models as RVT or IFC.

How do I get a quote for a measured survey?

Send the site address, what you need surveyed and the outputs you want. Existing plans or photos help, so email them to alex@samarasurveys.co.uk and we will include them in the quote.
